Link-Belt® HD-CAT™ Bar Screen

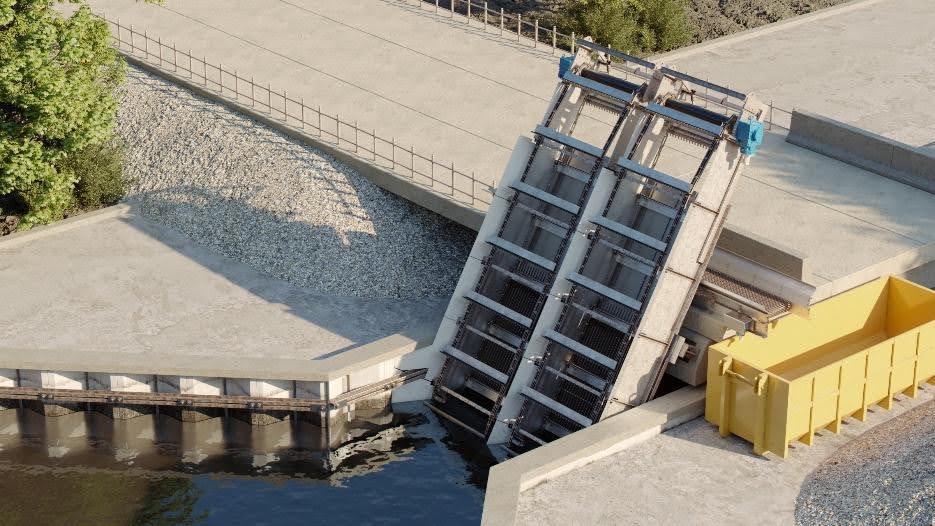

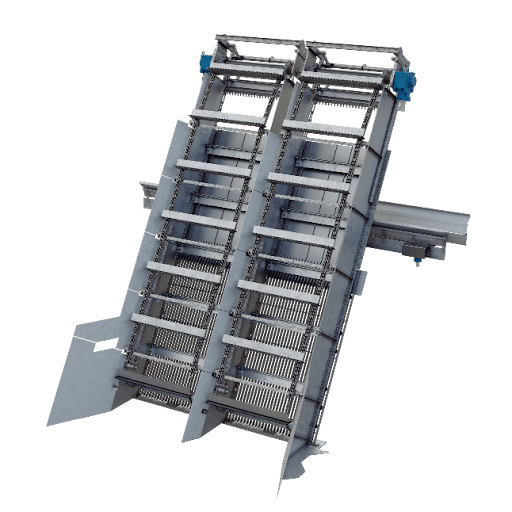

The HD-CAT™ Screen is a durable, self-contained, catenary-style chain and rake bar screen built for reliable, variable debris loads. Built to handle high debris loads, severe environments, and extreme weather events, this hurricane-ready screen ensures reliable protection for downstream processes by removing large solids with efficiency.
Constructed from premium materials and enhanced with advanced automation, the HD-CAT™ delivers long-lasting, low-maintenance performance for municipal and industrial applications. Proudly made in the USA, it offers a dependable solution for both new installations and the replacement of aging equipment.
Features
Catenary Chain Engagement – Eliminates foot sprockets, reducing submerged wear points and simplifying maintenance.
Bolt-On Non-Metallic Teeth – Easy to replace, corrosion-resistant, and gentle on chain links for extended service life.
Rugged Frame Construction – Available in carbon steel or stainless steel for strength and durability in harsh environments.
Knuckle Chain – Cast 316 stainless steel for superior corrosion resistance and long-term reliability under high-load conditions.
In-Line Drive – Compact, efficient power transmission with minimal maintenance requirements.
Applications
- Channel widths : up to 14’
- Channel depth: up to 50’
- Spacing 3/8” and larger
- Bar rack incline from 60o to 75o
Markets
Municipal Wastewater
Stormwater
Freshwater Intakes
Pump Station
Industrial Wastewater
Parts
WSG & Solutions, Inc., is your OEM source for genuine Link-Belt® aftermarket parts and support. We stock common Link-Belt® Catenary Bar Screen parts to ensure quick delivery and have the expertise and design records to provide rebuilds or retrofits to ensure the long-term operation of your screen.
Contact us for the following common Link-Belt® Catenary Bar Screen parts: screen chains, cleaning rakes, sprockets, head shaft bearings , wiper blades, drive components, switches and ALL fabricated parts.
